Solar Charger For 12v Battery

As one of the China solar charger for 12v battery suppliers,GGXingEnergy® always focus on providing the high quality solar products and ensured service to customers. We can provide the bulk and wholesale solar charger for 12v battery, follow the OEM and ODM requests, or arrange the drop shipping orders. Welcome to buy discount solar charger for 12v batteryor just send us your price inquiry.

Send Inquiry

PDF Download

Product Description

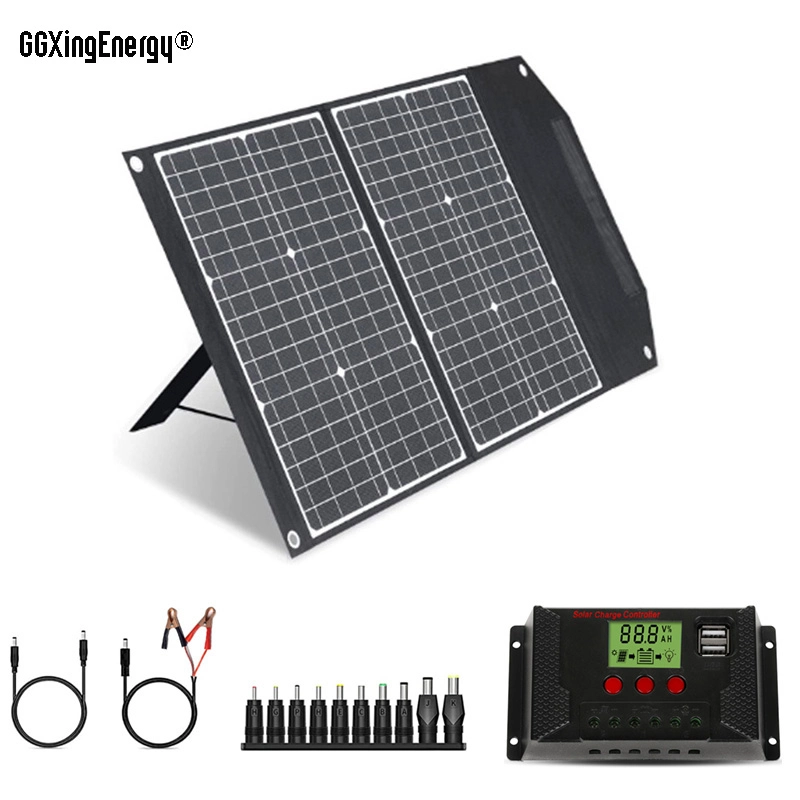

Here is an easy-maintainable GGXingEnergy® 60watt solar charger for 12v battery, designed to be foldable and portable, improved with ETFE craft, matched with a solar controller suitable for both 12v lead-acid and lithium batteries, equipped with DC and USB outputs, it is great for your camping trip.


60Watt Solar Charger for 12V Battery Parameter

Solar Panel

Solar Panel Max Power

60 Watt (2 x 30 watt)

Solar Cell Type

A-grade monocrystalline

Solar Cell Efficiency

>22%

Optimum Operating Voltage (Vmp)

18V

Optimum Operating Current (Imp)

3.3A

Open-Circuit Voltage (Voc)

21.6V

Short-Circuit Current (Isc)

3.6A

Output

DC port: 18V3A (max)

USB Port: 5V/2.1A (max)

QC3.0 Port: 5V9V12V 24W (max)

TYPE-C Port: 5V-15V 18W (max)

Test Condition

STC Irradiance 1000W/m², TC=25℃, AM=1.5

Operating Temperature

14℉-149℉ (-10℃-+65℃)

Material

ETFE + EVA layer + Solar Cell + PCB backer sheet + Canvascloth cover

Extended Size

32*21.2* 0.4 inches

Folded Size

21.2* 14.2 * 1.2 inches

Weight

2.5 kg (5.5Ib)

Color

Black / Camouflage

Certification

CE / RoHS / FCC

Warranty

1 year


Solar Controller

Battery Voltage

12V 24V Auto (Here matching the 60w solar panel, please only use for 12V battery.)

Battery Type

12V lead-acid battery, 12V ternary lithium battery, 12V LFP battery

Working Mode

PWM

Charging Current

10A

Discharging Current

10A

Max Solar Input

23V(for 12V battery)

Equalization

Lead-acid: 14.4V, nonadjustable

Ternary lithium: 12.6V, nonadjustable

LFP: 14.6V, nonadjustable

Float Charge

Lead-acid: 13.7V, adjustable 13V-15V

Ternary lithium: 12.0V, adjustable 11.5V-12.5V

LFP: 13.8V, adjustable 13V-14.5V

Discharge Stop

Lead-acid: 10.7V, adjustable 9.5V-11.5V

Ternary lithium: 9.0V, adjustable 8.5V-9.5V

LFP: 10.0V, adjustable 9.5V-10.5V

Discharge Reconnect

Lead-acid: 12.6V, adjustable 11.5V-13V

Ternary lithium: 10.5V, adjustable 10V-11V

LFP: 12V, adjustable 11.5V-12.5V

USB Port

2 x USB, 5V2A (max)

Self-consume

<10mA

Operating Temperature

-35°C~+60°C

Size

133*70*35mm

Weight

140g

Certification

CE, RoHS


60Watt Solar Charger for 12V Battery Feature

ETFE lamination with better quality and longer service life

This GGXingEnergy® 60watt solar charger for 12v battery is updated with ETFE lamination, which is a much higher quality level than PET one. It is with 95% light penetration and honeycomb structure to absorb more sunlightto improve the charging efficiency.Also the better resistance for heatand corrosion can extend the life-span of the 60watt solar charger for 12v battery.


Humanization design good for outdoors

The soft handle can let you feel comfortable and easy to carry the 60watt solar charger for 12v battery. There are only two solar panels and to be folded, easy to be set up and taken in when use. Also such a light weight and small solar charger for 12v battery is super portable. You can fix it at the top of your camper, or put it at the windshield of your car, or hang it on a tree, no restriction of use place. The output cable of the 60watt solar charger for 12v battery is 2m to be convenient for long distance connection with the battery.

The product body is waterproof (except the junction box and cable output lead) and durable enough to endure the outdoor terrible condition. The 600D PVC fabric is good for rugged ground. The ETFE coat is better for scratch proof and easier for cleaning.



Adjustable kickstands to enhance sunshine raying

A right angle for the solar panel facing sunlight can convert out more power. As sun position is changed during the day, adjust the kickstands at the back of the 60watt solar charger for 12v battery can realize a better angle. This can get 25%-30% more sunlight than lying flat.


Wide compatibility

Compatible for most solar generators and portable power stations

Via the DC port (18V3.3A max) of this 60watt solar charger for 12v battery, you can get your portable power station be charged via sunshine directly, solving the trouble as lacking of wall outlet.4 DC connectors are already in the package (8.0mm, 5.5x2.1mm, 5.5x2.2mm, 3.5x1.35mm). Other ones can be also added as per request.


Suitable for laptop / notebook

A laptop or notebook can be also charged via this 60watt solar charger for 12v battery. That will be plug in and play. Find the right connector for your laptop, then realize the connection with the 60watt solar charger for 12v battery under outside direct sunshine will be ok. (If there is no charging or discontinuous charging, please try it again under brighter sunlight or use a larger solar panel.) There are 10 DC adapters for most brands of laptops on market (Above mentioned 4 ones are from here).



Additionally functional with USB / QC3.0 / TYPE-CPort

Like phone, smart phone, iPhone, iPad, Apple watch, tablet, power bank, PSP, switch, bluetooth, earphone, GPS, music player, and other 5V USB supported small devices, or QC3.0 & PD protocol electronic devices can be also charged by the 60watt solar charger for 12v battery. No needing a battery or mains supply at all.


Matching with solar controller fitting for both lead-acid and lithium battery

A 10A PWM solar controller (installed with 0.5m connection cable for solar panel and 0.5m cable with battery clamps) will be in the package together with this 60watt solar charger for 12v battery. This solar controller can be used for 12V lead-acid battery, 12V ternary lithium battery, and 12V LFP battery. And it can provide short-circuit,open-circuit,reverse and over-load protection for your 12V RV / camper / motorhome / car / boat batteries.
