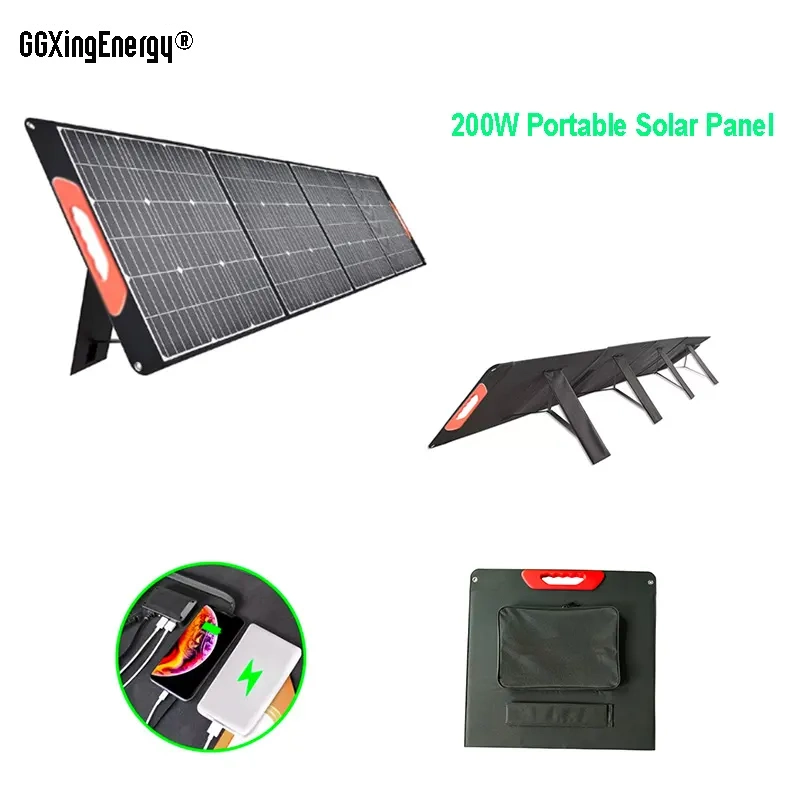

200w Portable Solar Panel

As one of the 200w portable solar panel manufacturers in China, GGXingEnergy® always aim for good quality and honest business with every customer. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 200w portable solar panel. We look forward to cooperating with you.

Send Inquiry

PDF DownLoad

Product Description

This is a newest GGXingEnergy® 200w portable solar panel, advanced with ETFE coating and 4 output ports. More larger power can let you more enjoy the solar charging. Ideally suited for outdoor life, camping, travel, picnic, home emergency and off grid living power outage supplies.

200W Portable Solar Panel Parameter

Solar Panel Max Power

200 Watt

Solar Type

A-grade monocrystalline solar cell

Solar Cell Efficiency


Optimum Operating Voltage (Vmp)


Optimum Operating Current (Imp)


Open-Circuit Voltage (Voc)


Short-Circuit Current (Isc)


Number of Solar Panels

4 folds


USB Port: 5V/2.1A (max)

QC3.0 Port: 5V-3A or 9V-2.5A or 12V-2A, 24W (max)

TYPE-C Port: 5V-3A or 9V-3A or 12V-3A or 15V-3A or 20V-3A, PD60W (max)

DC Port: 18V/11A (max, at no-load condition)

Test Condition

STC Irradiance 1000W/m² , TC=25℃, AM=1.5

Output Interface

USB / DC / MC4 / SAE / Anderson, etc.

Extended Size

2280×540×25mm / 90*21.3*1.0 inch

Folded Size

540×600×55mm / 21.3*23.6*2.2 inch


7.5kg / 16.5lb


Black / Camouflage

200W Portable Solar Panel Description

A High Quality 200W Portable Solar Panel

Advanced with ETFE coating, it is with more advantages than a general PET 200w portable solar panel.

The unique ETFE construction is water resistant. It is more stronger for high temperature and moist condition use than general PET laminated solar panels. Featuring with honey-comb structure which enhance 10% natural lighting, high transparency (95%) to ultra-violet light, it can get better charging efficiency. Long life and recyclable, the age of ETFE laminated membrane is up to 25 years, later it could be decomposed for other use, 100% recyclable; thus a general PET solar panel may get efficiency down after two years use.

The solar cell efficiency can be up to 22%, with higher level than the average efficiency on the market. This is not only a good ensure for the quality of solar cell, such a 200w portable solar panel can realize smaller size and lighter weight to be more convenient for your outdoor use.

Using 1.2mm PCB board at back, not 1.0mm like other sellers, it can do better protection for the solar cell.

The cloth cover is made from durable oxford cloth and IP65 high water resistant to endure all weather conditions. (P.S.: The cable out leads and the junction box is not waterproof. Please make them be dry.)

A Portable and Foldable 200W Solar Panel

This GGXingEnergy® 200w portable solar panel is installed with two magnet equipped handles. Compared to other solar panels, such kind of handles are more fashion and also bring better portability. Just put the two solar panels together, you can finish the folding work due to the magnet attraction. Then folds back to storage like a briefcase size, it is small enough to be put in your camping bin or under the seat.

Designed with 4 metal hanging holes at each corner, this 200w portable solar panel will be convenient to be tied on a car roof or a tree, charging devices freely when you are driving, fishing, climbing, hiking, and anywhere you on the go.

A Wide Compatible 200W Portable Solar Panel

This 200w portable solar panel is with 4 output ports.

The DC 18V port can charge for most of portable power stations on the market. Also it can charge for laptops and 12v batteries. (P.S.: Before charging the portable power station, please firstly confirm its input port, also the voltage and current.)

The black USB port is general 5V2.1A (max). The orange USB port is QC 3.0 quick charging, 5V/9V/12V, 2A 24W (max). The Type-C port is 5V-20V, 3A PD 60W (max). Greatly charging for phones, smart phones, tablets, power banks, PSP, MP4, GPS, bluetooth earphones, and other 5V USB powered devices.

Equipped with 4 adjustable kickstands at back, it can get 25%-30% more sunlight than lying flat to improve the charging efficiency. The kickstand body covered by the cloth is aluminum. It is strong enough to support the solar panel to not be blown down.

Using such a 200w portable solar panel for your tent camping as well as with remote parking with your van, you will not lose power again. But this 200w portable solar panel is without battery inside and can not store power. You will need to use it under direct sunlight.
