100 Watt Solar Panel For Camping

GGXingEnergy® is a large-scale manufacturer and supplier for 100 watt solar panel for camping in Shenzhen, China. In GGXingEnergy we can always ensure the best price and top quality rate for you. Look forwarder to becoming your long-term partner in China.

Send Inquiry

PDF Download

Product Description

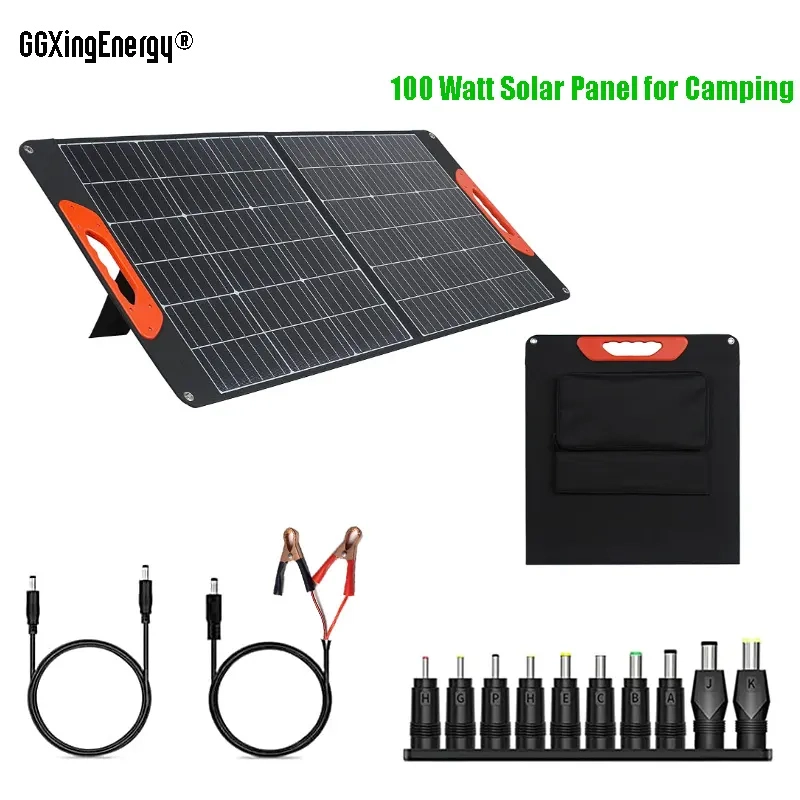

This fashional GGXingEnergy® 100 watt solar panel for camping is equipped with 4 output ports. The DC / USB / QC3.0 / Type-C charging can be almost compatible for full DC devices. The portable and foldable design can be easy for carrying. Converting sunlight to power directly, no needing battery and AC source, the 100 watt solar panel for camping will be ideal for RV camping, off-grid road trip and unexpected power outages.


100 Watt Solar Panel for Camping Parameter

Solar Panel Max Power

100 Watt

Solar Type

A-grade monocrystalline solar cell

Solar Cell Efficiency

22%

Optimum Operating Voltage (Vmp)

18V

Optimum Operating Current (Imp)

5.5A

Open-Circuit Voltage (Voc)

21.5V

Short-Circuit Current (Isc)

6.1A

Output

USB Port: 5V/2.1A (max)

QC3.0 Port: 5V-3A or 9V-2.5A or 12V-2A, 24W (max)

TYPE-C Port: 5V-3A or 9V-3A or 12V-3A or 15V-3A or 20V-3A, PD60W (max)

DC Port: 18V/5.5A (max, at no-load condition)

Test Condition

STC Irradiance 1000W/m² , TC=25℃, AM=1.5

Operating Temperature

14℉-149℉ (-10℃-+65℃)

Extended Size

46.26in *20.67in * 0.2in

Folded Size

23.03in * 20.67in * 4.57in

Weight

8.16lbs

Color

Black / Camouflage


100 Watt Solar Panel for Camping Application

GGXingEnergy® 100 watt solar panel for camping is a great option if you are taking an extended camping trip or if you are traveling somewhere with an unreliable power grid. Powering by sunlight, it is also a must have for stashing in an emergency kit.


1. DC 18V Out

a. Compatible for portable power station

Before using this GGXingEnergy® 100 watt solar panel for camping to charge, please firstly confirm the right input voltage and current for your own portable power station. This 100 watt solar panel for camping is 18V / 5.5A out. Some portable power stations may do not need 18V for charging or can not accept the current up to 5.5A. There are three DC adapters, 8mm, 5.5x2.1mm, 5.5x2.5mm. If there is no right DC adapter for you, please contact us.


b. Charging laptop directly

There are 10 x adapters for general brands of laptops. Find the right adapter for your laptop, then connect your laptop with the 100 watt solar panel for camping via the DC 5521 to DC 5521 cable. It is plug and play use. Normally if sunshine is strong enough, the laptop can get a good charging with the current near 4A-5A. If the charging is too slow or no charging, it is due to weak sunlight condition. Please try it again under bright sunlight.


c. Charging 12V car battery

There is no solar charge controller together with this 100 watt solar panel for camping. Because sometimes customer already has his own solar controller. If charging a 12V battery up to 60AH, it can do charge directly. If battery capacity below 60AH, we suggest to use a solar controller together. The solar charge controller is used to protect the 12v battery from discharging and overcharging. We can provide it for you if you needing. This 100 watt solar panel for camping can charge kinds of 12V batteries, such as GEL, Lead-acid or Lithium iron phosphate. But if matching a solar controller, it needs to fit the right model as per battery type. There is a couple of battery clamps with 0.5m cable in the package.


2. USB / QC 3.0 / Type-C Charging

a. The black USB port is general USB 5V 2.1A (max). It can charge kinds of 5V USB supported devices, such as phone, power bank, MP4, PSP, digital camera…

b. The orange USB port is for QC 3.0 quick charging, 5V/9V/12V, 24W (max).

c. The Type-C port is 5V to 20V, PD 60W (max).

GGXingEnergy® 100 watt solar panel for camping provides smart charge technology which can recognize your device smartly then providing optimal charging speed vary with different devices.


100 Watt Solar Panel for Camping Details
